M5 - Styli for Thread Measuring
Stainless steel

TI M5 005 11 040

We offer several holders designed to be used with this threadless styli, M2, M3 & M11
Ruby ball, peg mounted exept for ball-Ø 0,5 mm. Special design on request.
Silicium nitride and zirconium oxide balls are available for all styli and all thread sizes.

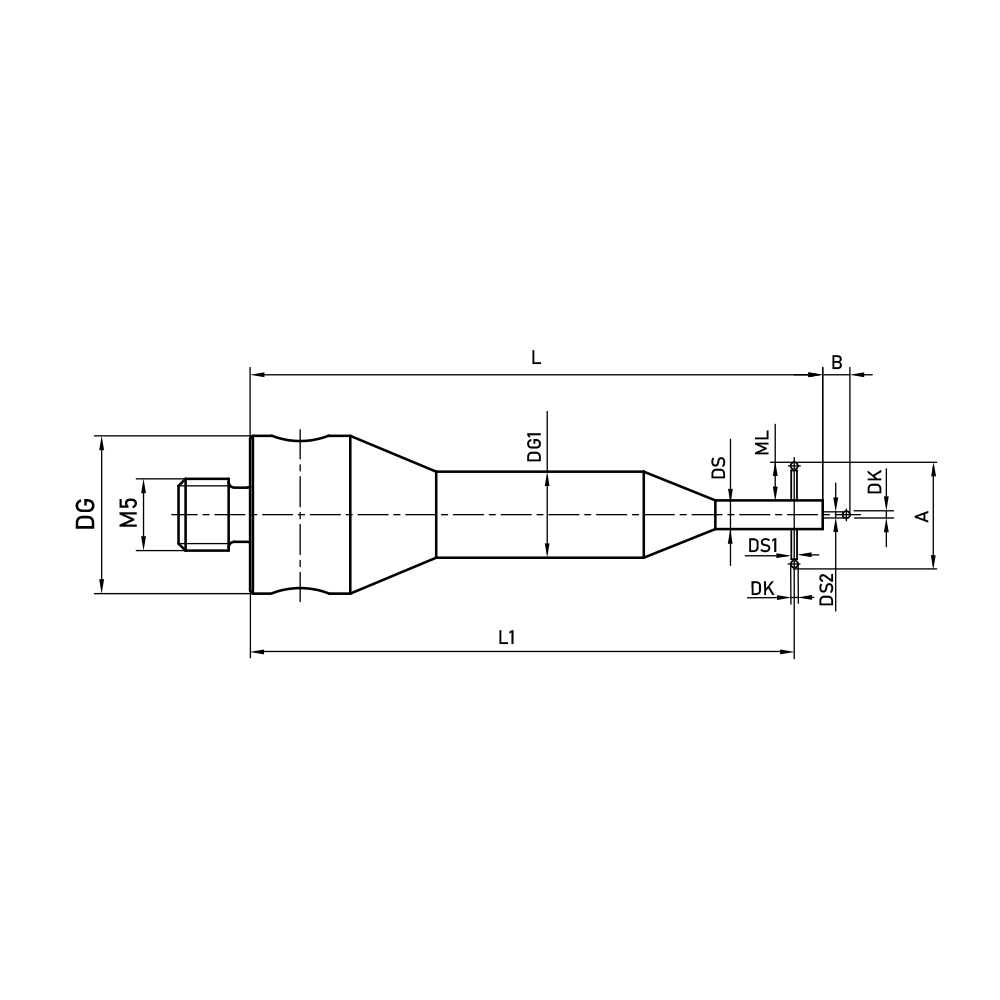

Sphere-Ø mm DK Measure. len. mm ML Body-Ø mm DG Total length mm L Shaft-Ø mm DS Measure. len. mm B Weight g Price/piece
0.5 3.5 11.0 40.0 0.4 1.9 7.0 276.00
