Ruby ball, peg mounted, except for ball-Ø 0,2 mm – 0,6 mm. Special design on request.
Silicon nitride and zirconium oxide balls are available for all styli and all thread sizes.

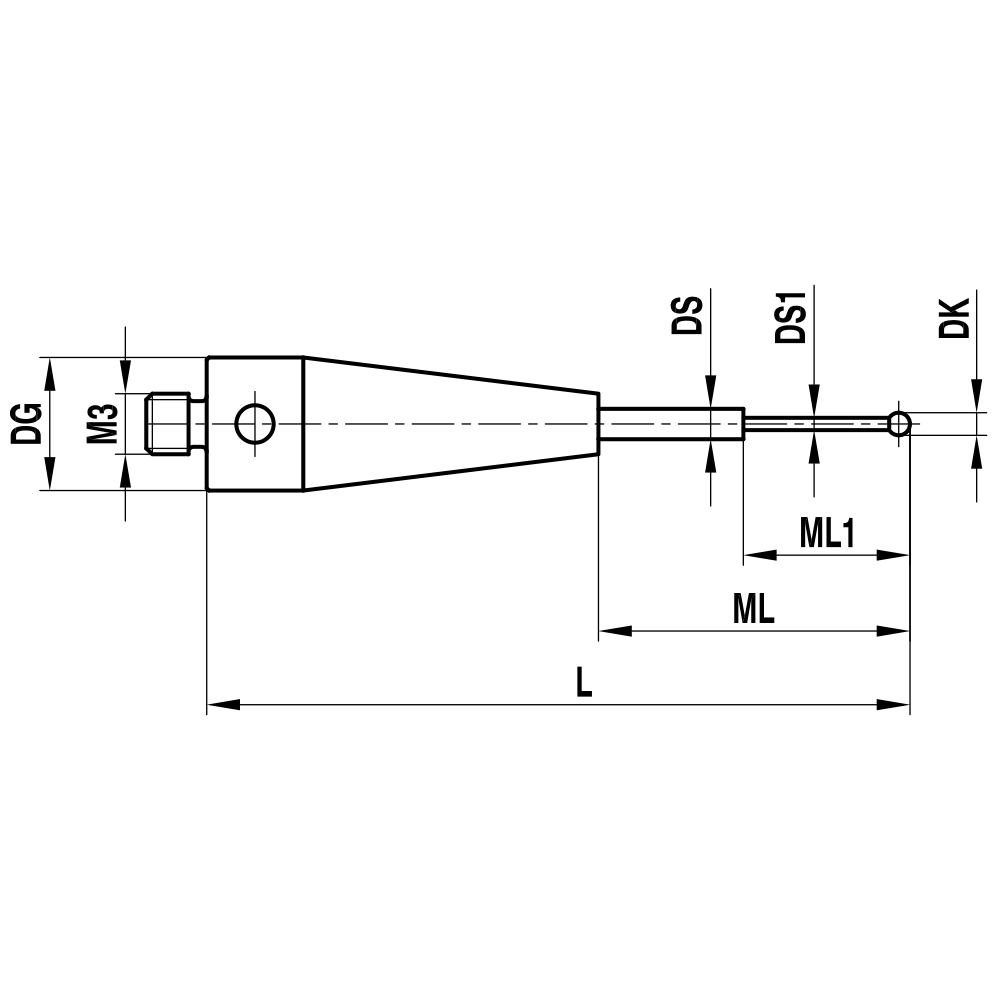

Sphere-Ø mm DK | Measure. len. mm ML1/ML | Body-Ø mm DG | Total length mm L | Shaft-Ø mm DS1/DS | Weight g | Price/piece |
---|---|---|---|---|---|---|
0.8 | 4.8/9.0 | 4.0 | 22.0 | 0.6/1.0 | 1.0 | 39.00 |
