M3 - Straight Styli
Stainless steel base, carbide stem, ruby ball

TH M3 006 04 022

Ruby ball, peg mounted, except for ball-Ø 0,2 mm – 0,6 mm. Special design on request.
Silicon nitride and zirconium oxide balls are available for all styli and all thread sizes.

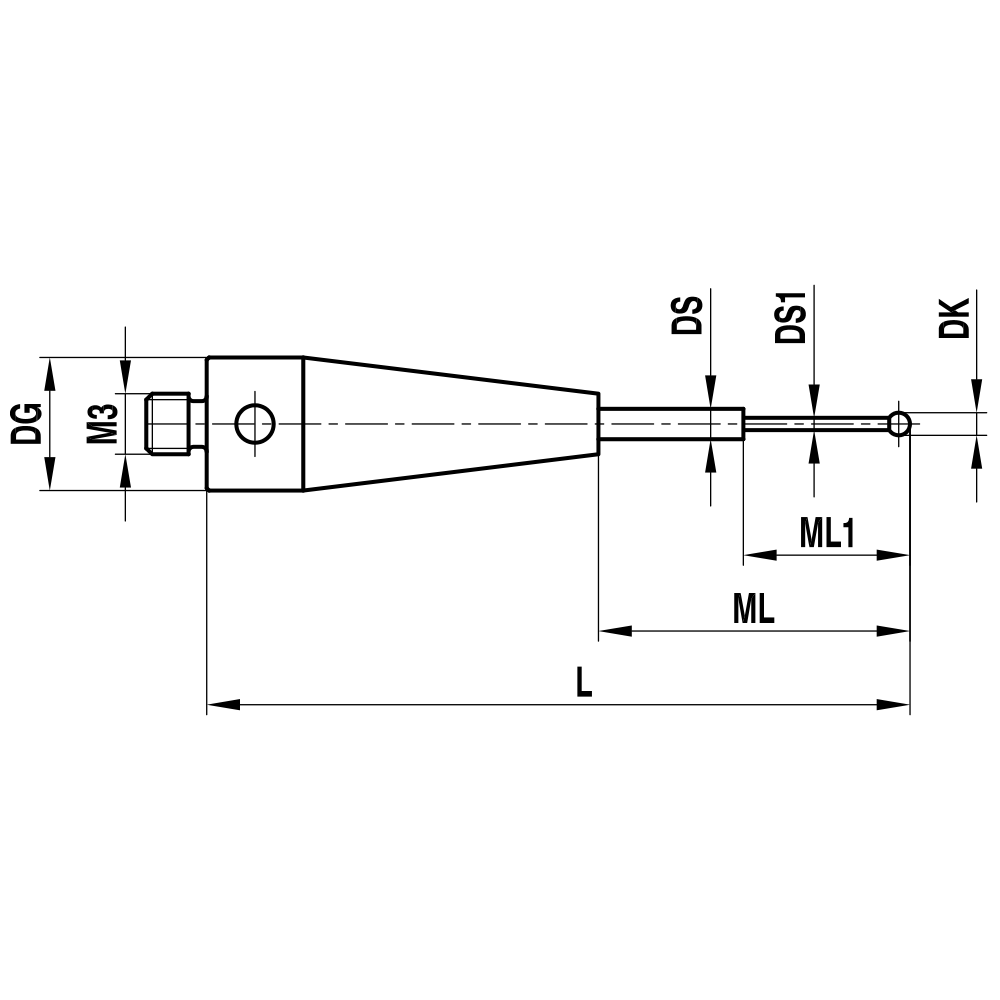

Sphere-Ø mm DK Measure. len. mm ML1/ML Body-Ø mm DG Total length mm L Shaft-Ø mm DS1/DS Weight g Price/piece
0.6 4.6/9.0 4.0 22.0 0.4/1.0 1.0 40.00
