M2 - Styli for Star Configurations
Stainless steel base and stem, ruby ball

SI M2 020 03 019

These styli have extended threads and are to be used with SI M2 020 06 022 and SI M2 020 06 032
Ruby ball, peg mounted. Special design on request.
Silicon nitride and zirconium oxide balls are available for all styli and all thread sizes.

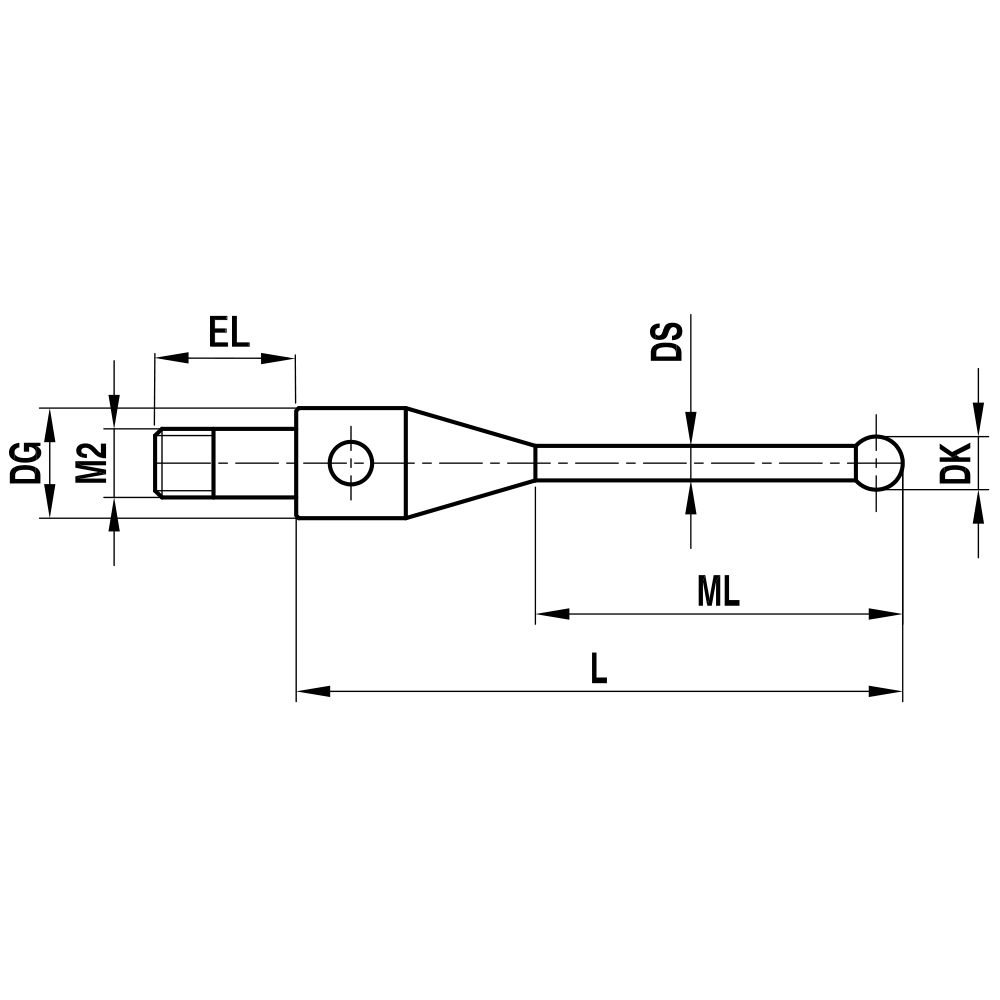

Ball-Ø mm DK Measure. len. mm ML Body-Ø mm DG Total length mm L Shaft-Ø mm DS Weight g Price/piece
2.0 13.5 3.0 19.5 1.5 1.0 32.00
