Adapters & Thread Sizes per OEM Sensors

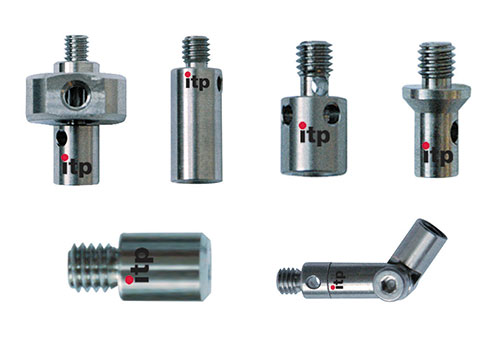

itpstyli offers a number of adapters in the event you would like to expand your options for selecting from our standard inventory (as opposed to having us manufacture a customized stylus for you). See the link below for a listing of thread-to-thread adapters.

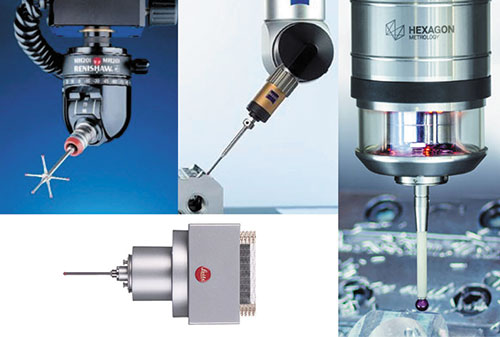

The following is a listing of thread sizes associated with various probe head sensor models for your reference.

THREAD SIZE: OEM SENSOR MODEL

Gewindeübersicht

Thread M2	M3	M4	M4 (cont.)	M5	M6
MH20i	MIP	CYCLONE	CP1	LEITZ TRAX	FARO
TP2	SP25M	DEA TF8	SP620	SP2
TP20	TESASTAR	LP2	LP2H	SP2-1
TP200	TP1	MP1	LP2DD	SP80
TP200B	TP-50	MP10	MP15	VAST NAVIGATOR
TP200 NI	TP6	MP10E	RMP60	VAST GOLD
P1-5A	TPES	MP11	TP7M	DT
P1-5BS	VAST XXT	MP12	MP8	RST-P
	TP6	MP4	RP2	SP80
	SP25	MP16	RP1	ST2
	TP6A	MP18	RP1DD	ST3
	TP1sm	MP3	RP2	VAST XT
	TESA	MP4	RP2DD	UNIVERSAL 3D
		MP6	SP620	VAST NAVIGATOR
		MP7	SP600M	LSP-X5
		MP700	OMP40	SiP-3D
		MP700E	SP600
		MP8	TP7
		MP9	TP800
		TS27R

Shop Solution

Thread Adapters

Sensor Thread Size Chart
