M5 - Stepped-Stem Styli

Email this Description

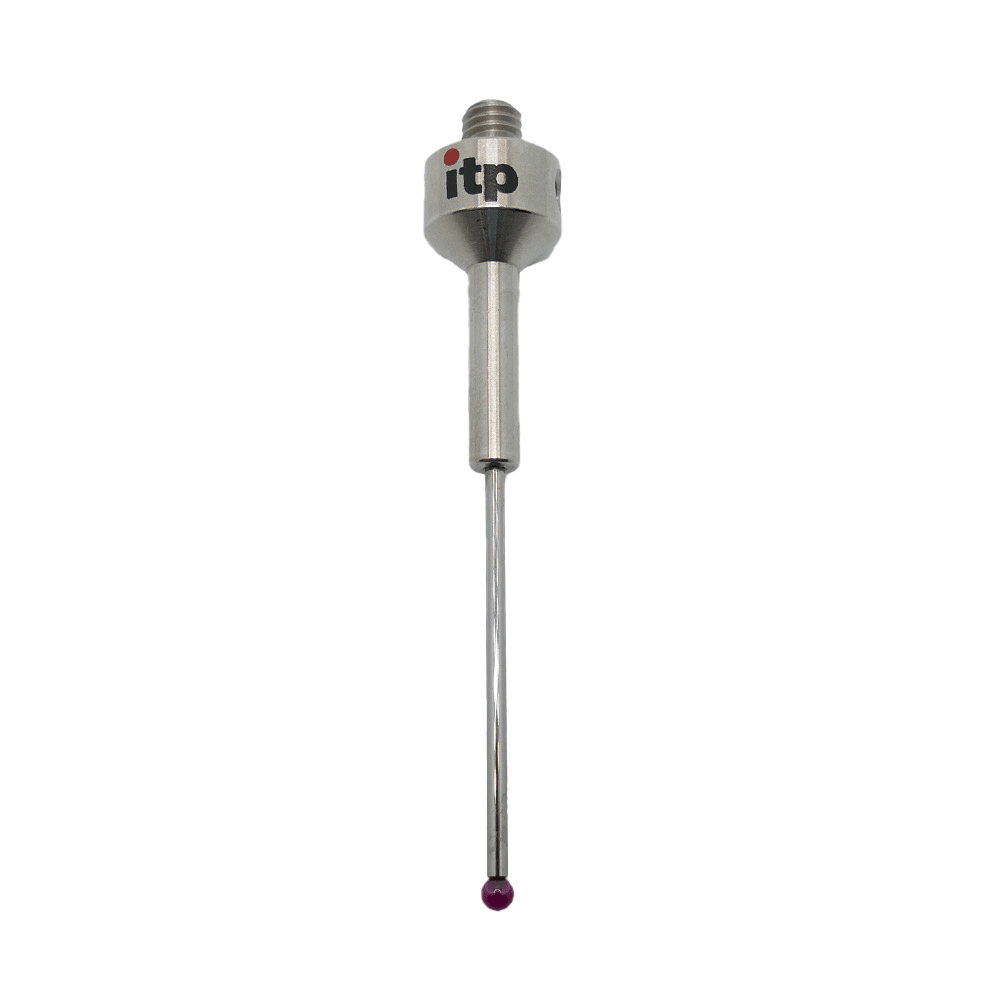

M5 - Stepped-Stem Styli
Stainless steel base, carbide stem, ruby ball

FH M5 025 11 058

Ruby ball, peg mounted, except for ball-Ø 0,2 - 0,6 mm. Special design on request.
Silicon nitride and zirconium oxide balls are available for all styli and all thread sizes.

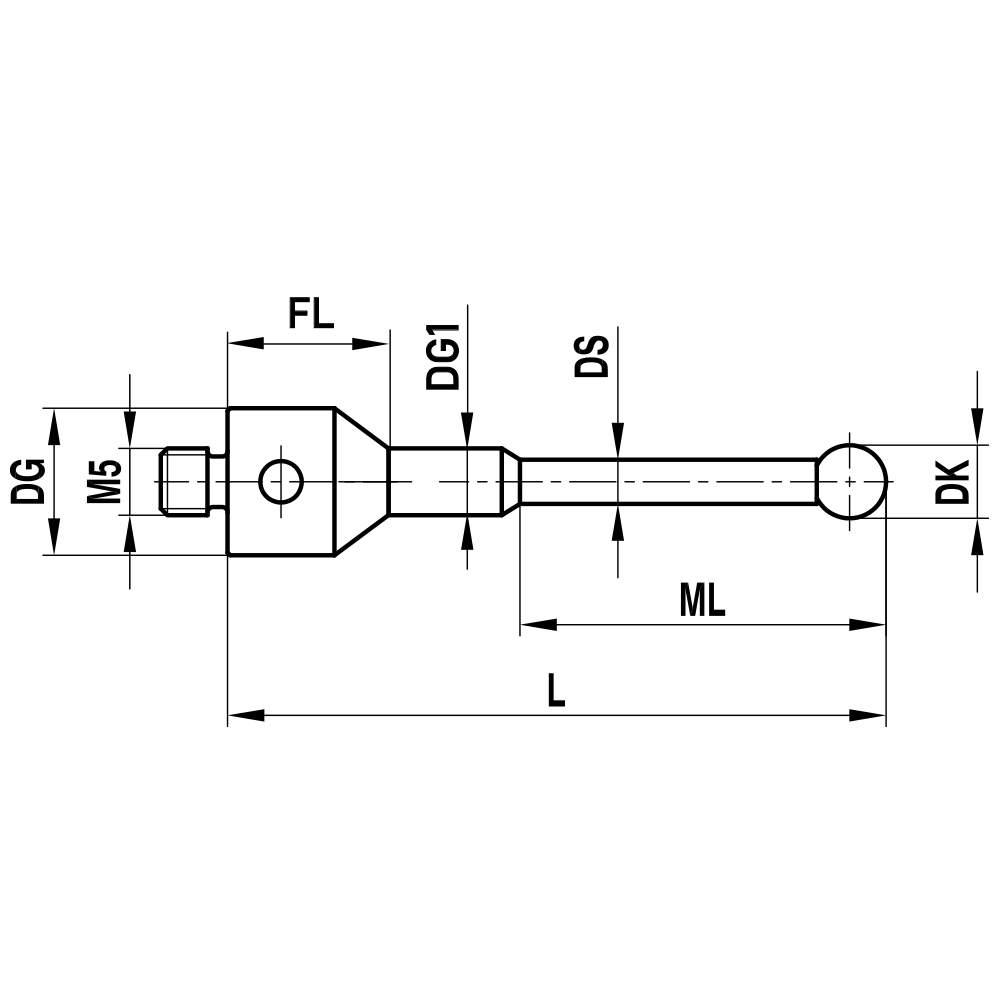

Sphere-Ø mm DK Measure. len. mm ML1/ML Body-Ø mm DG Total length mm L Shaft-Ø mm DS1/DS Weight g Price/piece
2.5 33.0 11.0 58.0 1.5 8.0 53.00
