M5 - Stepped-Stem Styli
Stainless steel base, carbide stem, ruby ball

FH M5 008 11 032

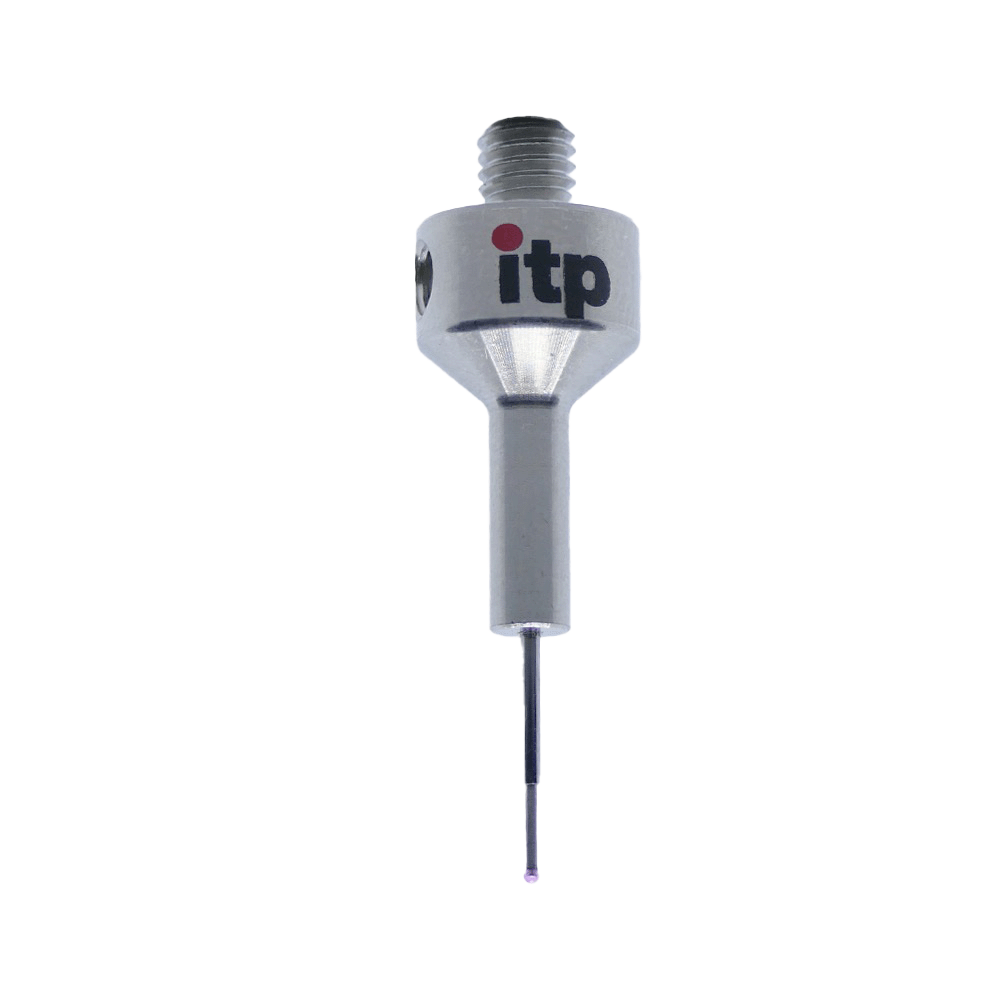

This is a mini ruby stylus, which is extremely fragile and requires very low contact force. Please note how narrow terminal stem is.
Ruby ball, peg mounted, except for ball-Ø 0,2 - 0,6 mm. Special design on request.
Silicon nitride and zirconium oxide balls are available for all styli and all thread sizes.

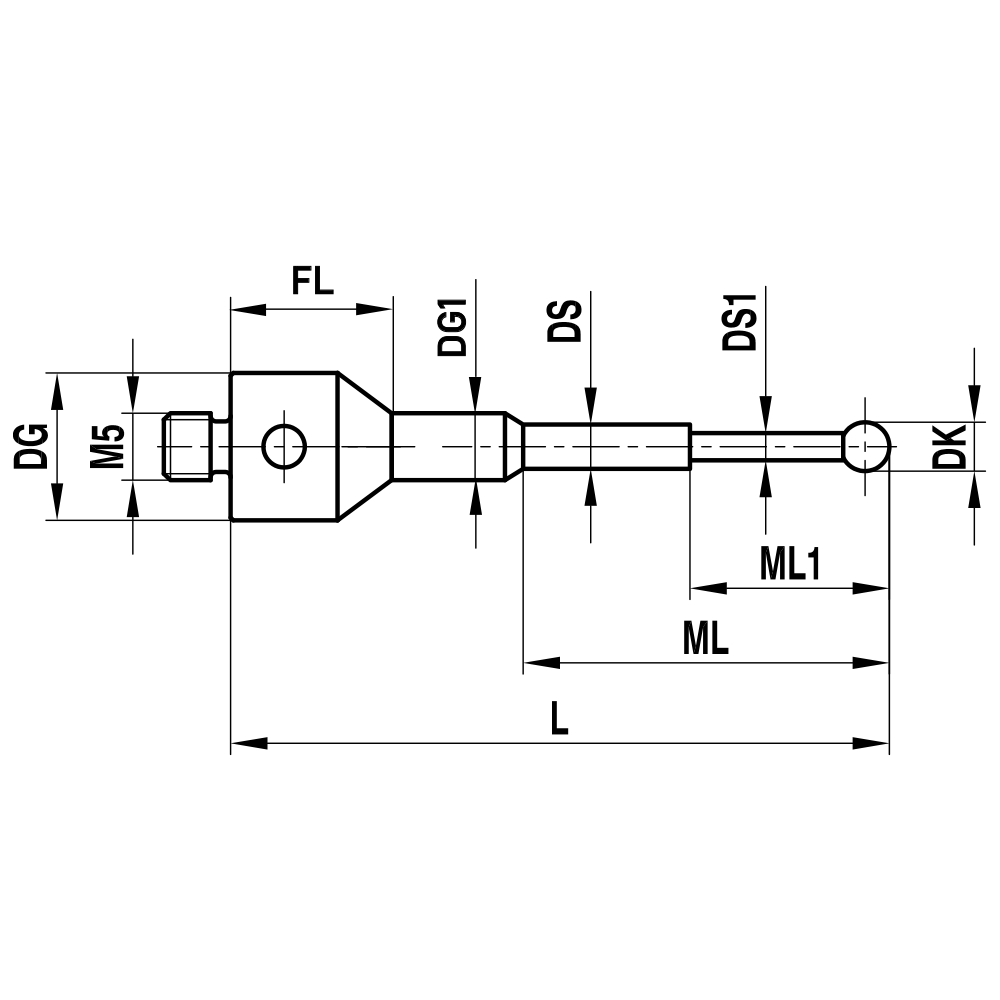

Sphere-Ø mm DK Measure. len. mm ML1/ML Body-Ø mm DG Total length mm L Shaft-Ø mm DS1/DS Weight g Price/piece
0.8 4.8/12.0 11.0 32.0 0.6/1.0 6.8 65.00
