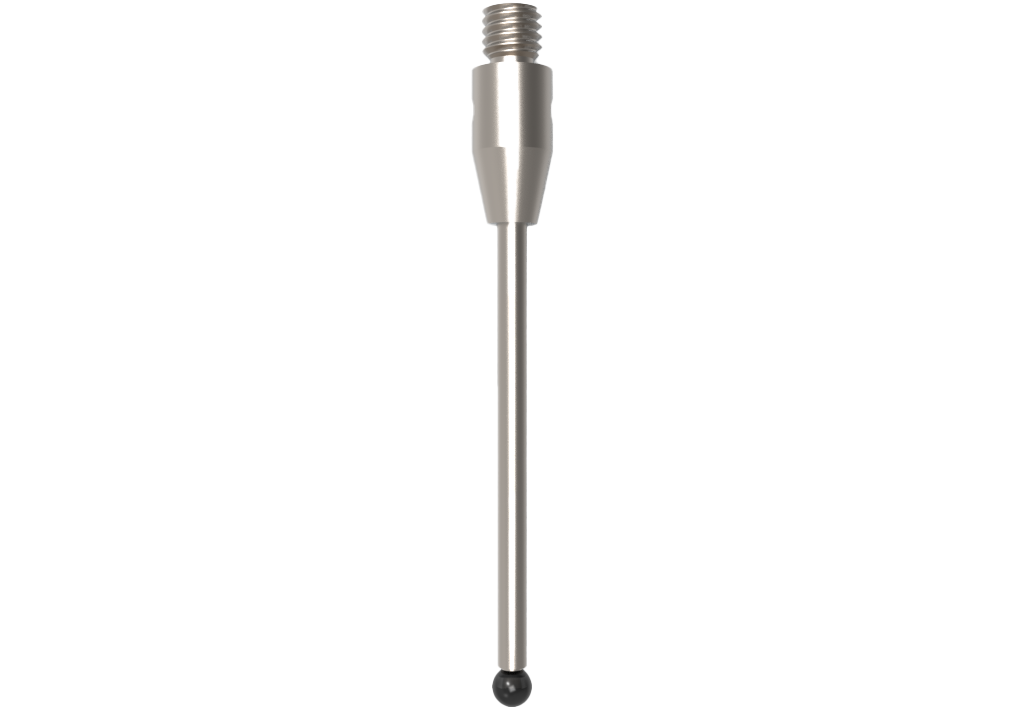

M3 Straight Scanning Stylus
Silicon Nitride Ball , Carbide Stem , Stainless Steel Base
2.0 mm Ball; 23.5 mm Measuring Length; 31.0 mm Total Length
M3 Straight Scanning Stylus
Silicon Nitride Ball , Carbide Stem , Stainless Steel Base
| Order-No.: | TH M3 S20 04 031 |
|---|---|
| Price: | $54.00 |

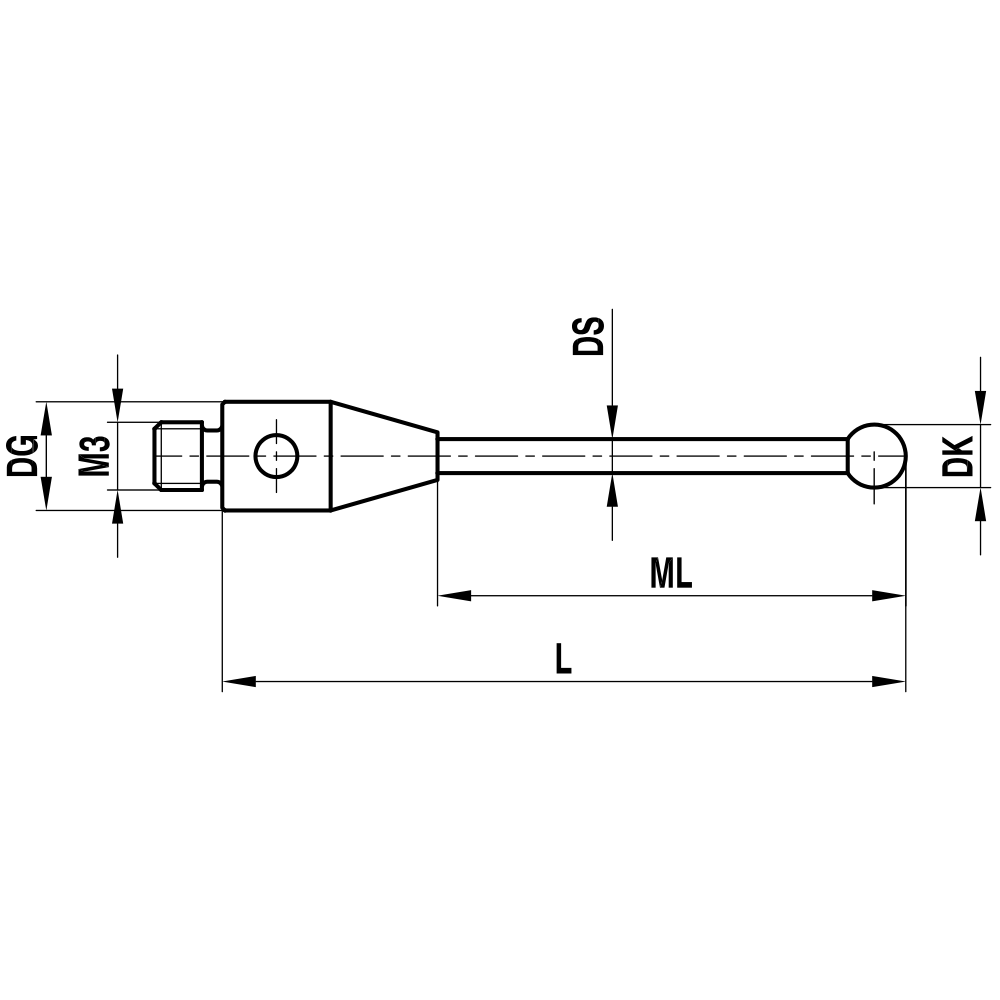

| Thread Size: | M3 |
| DK: | 2.0 mm |
| L: | 31.0 mm |
| DG: | 4.0 mm |
| ML: | 23.5 mm |
| DS: | 1.5 mm |
| Thread size: | M3 |
| Probe Ball Material: | Silicon Nitride |
| Stem Material: | Carbide |
| Base Material: | Stainless Steel |
| Weight: | 1.3 g |
| Design Your Own customized specials manufactured to your specifications. | |
| 2.0 mm Ball; 23.5 mm Measuring Length; 31.0 mm Total Length | |
