M3 - Carbon Fiber Clamping Styli XXT, Thermostable with Silicon Nitride Ball
Titanium base, carbon fiber shaft thermostable, silicon nitride ball, peg mounted for higher stiffness

TC M3 S30 05 020

This styli is designed to be used with Zeiss XXT probing systems.
Special designs on request.
All existing ball materials are available upon request for all styli and all thread sizes.

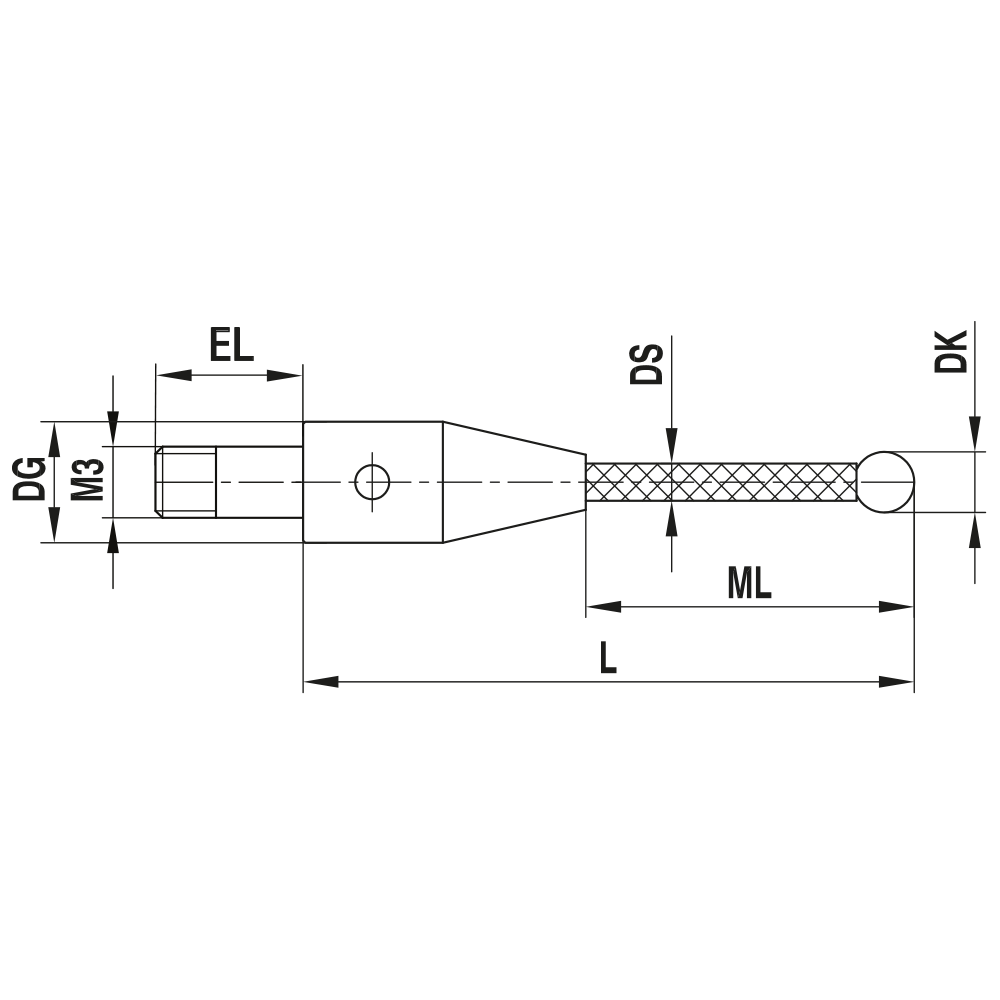

Ball-Ø mm DK Measure. len. mm ML Body-Ø mm DG Total length mm L Shaft-Ø mm DS Weight g Price/piece
3.0 11.0 5.0 20.0 2.0 0.7 115.00
