M5 Stepped-stem Stylus
Ruby Ball , Carbide Stem , Stainless Steel Base
0.80 mm Ball; 13.3 mm Measuring Length; 22.3 mm Total Length
M5 Stepped-stem Stylus
Ruby Ball , Carbide Stem , Stainless Steel Base
| Order-No.: | NH M5 008 11 022 |
|---|---|
| Price: | $59.00 |

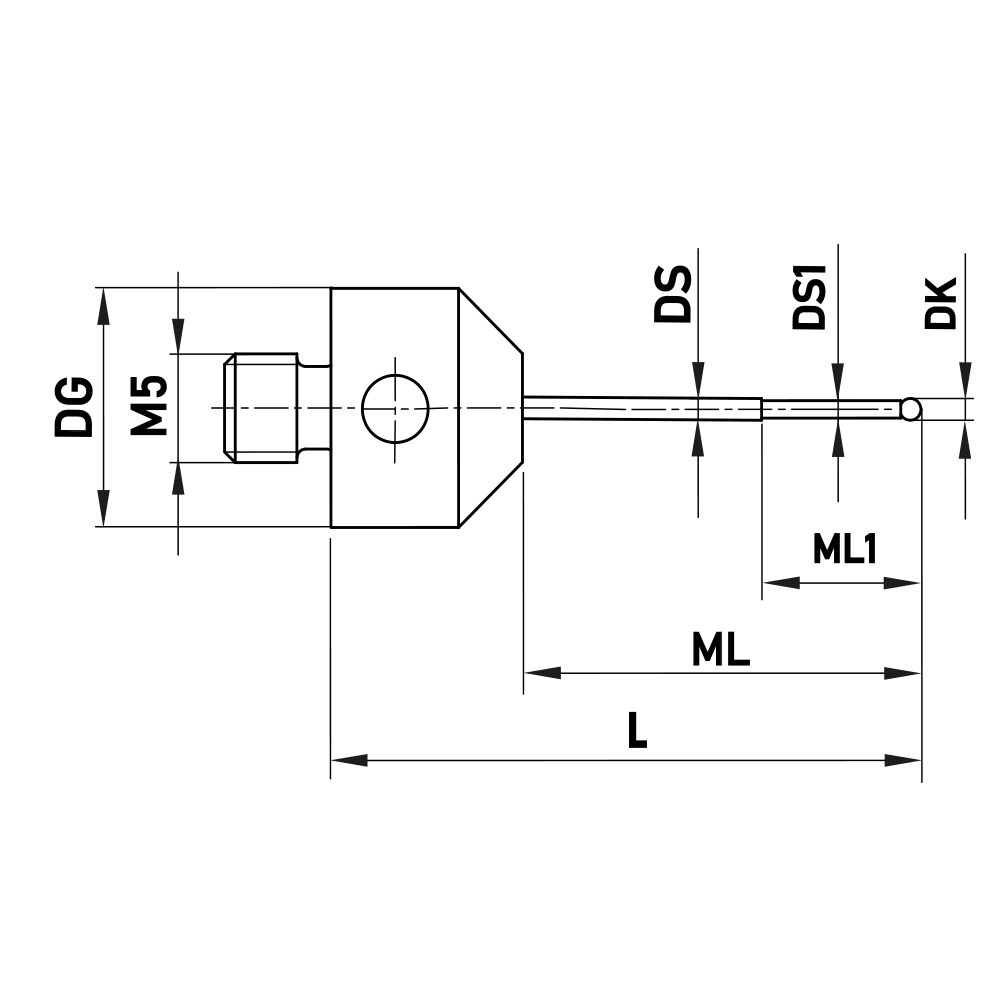

| Thread Size: | M5 |
| DK: | 0.8 mm |
| L: | 22.3 mm |
| DG: | 11.0 mm |
| ML: | 13.3 mm |
| Ml (1): | 4.8 mm |
| DS: | 1.0 mm |
| Ds (1): | 0.6 mm |
| Thread size: | M5 |
| Probe Ball Material: | Ruby |
| Stem Material: | Carbide |
| Base Material: | Stainless Steel |
| Weight: | 5.6 g |
| Design Your Own customized specials manufactured to your specifications. | |
| 0.80 mm Ball; 13.3 mm Measuring Length; 22.3 mm Total Length | |
Compare to:
| Zeiss: | 626115-0080-022 |
|---|---|
| Renishaw: | A-5003-0335 |
| Carbide: |
Cpz000-0820 Cpz000-0820C |
