M5 - Spherical Disk Styli - Titanium base, carbide stem, high
strength steel disk

KI M5 250 11 065

Disc styli are useful for measuring undercuts and groves. Some have spheres on one or both sides to allow measuring in X, Y and Z axis.
Special design on request.

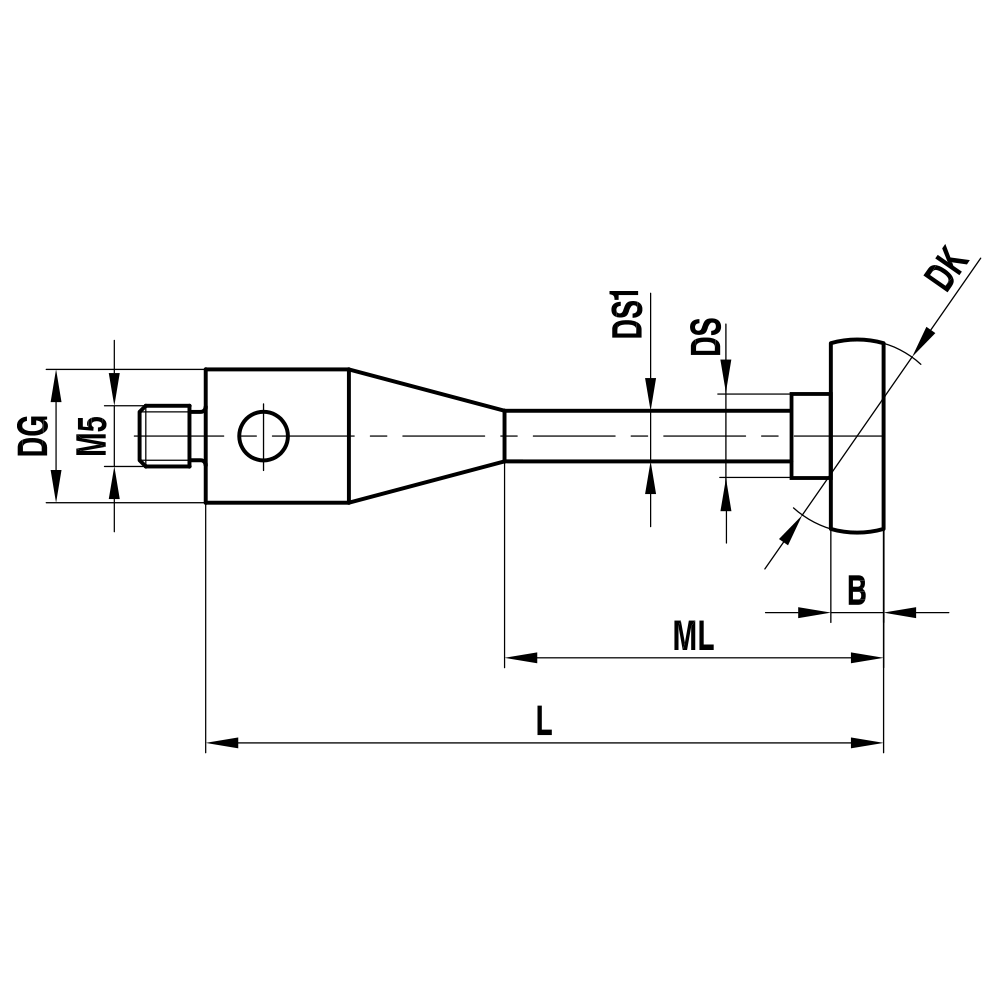

Disk-Ø mm DK Measure. len. mm ML Body-Ø mm DG Total length mm L Shaft-Ø mm DS1/DS Thickness mm B Weight g Price/piece
25.0 55.0 11.0 65.0 3.5/10.0 1.0 22.0 225.00
