Pointer styli are designed for the measurement of thread forms, specific points and scribed lines. They should not be used for conventional XY probing
Special design on request.

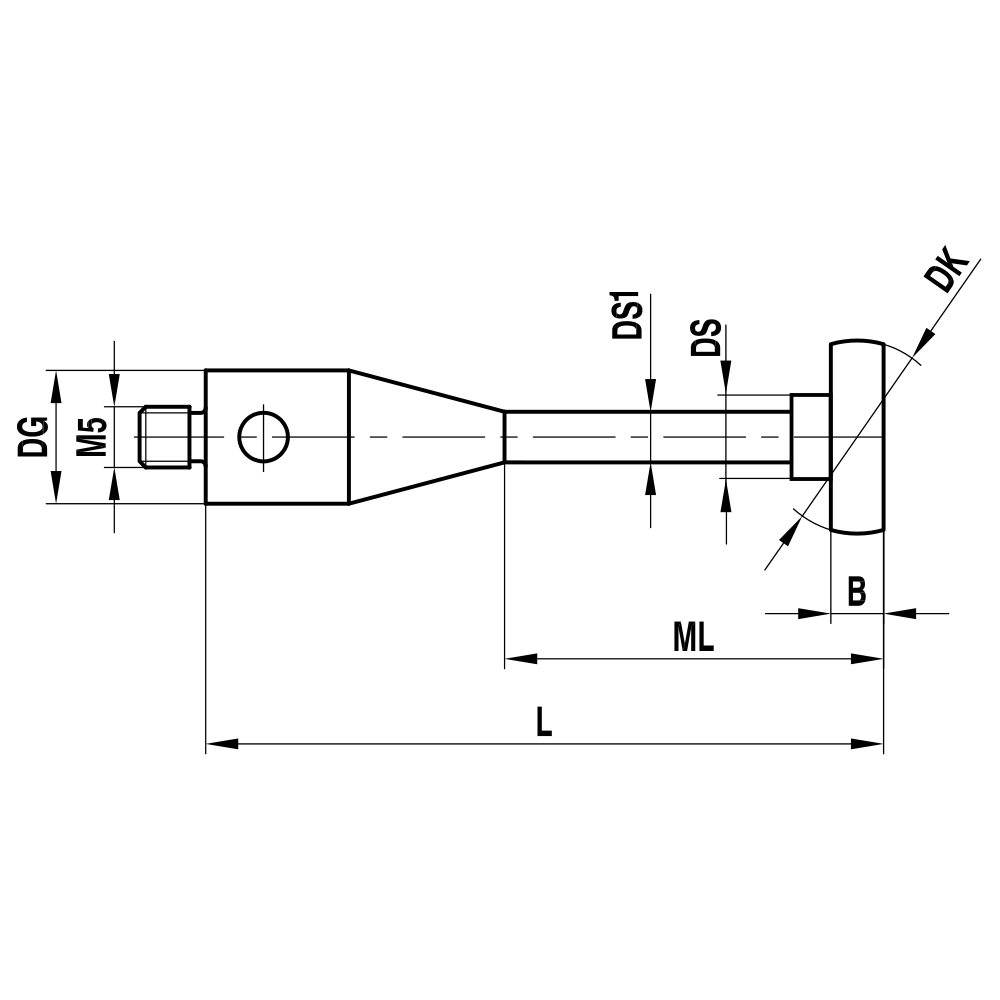

| Disk-Ø mm DK | Measure. len. mm ML | Body-Ø mm DG | Total length mm L | Shaft-Ø mm DS1/DS | Thickness mm B | Weight g | Price/piece |
|---|---|---|---|---|---|---|---|
| 10.0 | 55.0 | 11.0 | 65.0 | 3.5/5.5 | 1.0 | 11.0 | 137.00 |
