M5 - Styli for Thread Measuring
Stainless steel

TI M5 023 11 040

The styli are permanently fixed to the center hub and cannot be removed.
Ruby ball, peg mounted exept for ball-Ø 0,5 mm. Special design on request.
Silicon nitride and zirconium oxide balls are available for all styli and all thread sizes.

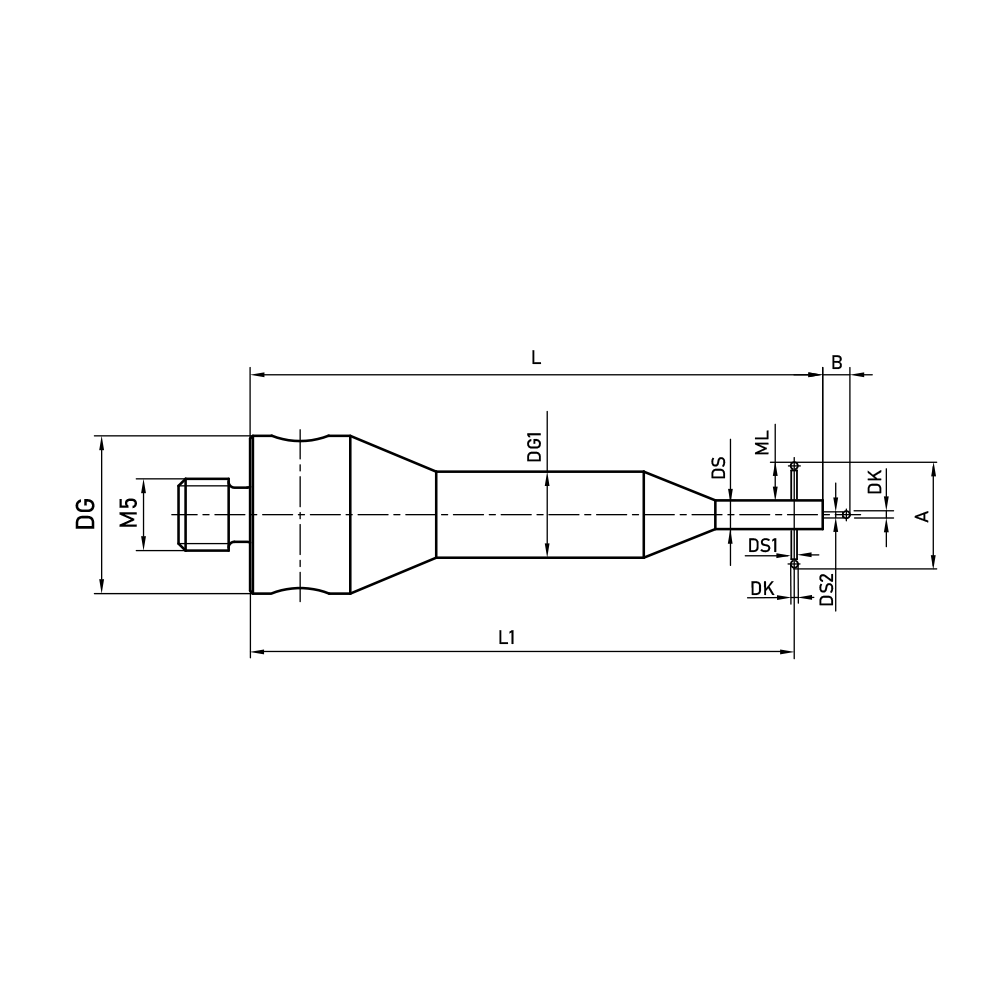

Sphere-Ø mm DK Measure. len. mm ML Body-Ø mm DG Total length mm L Shaft-Ø mm DS Measure. len. mm B Weight g Price/piece
2.3 12.0 11.0 40.0 1.0 2.5 13.0 114.00
