Ruby ball, peg mounted, except for ball-Ø 0,3 mm – 0,6 mm. Special design on request.
Silicon nitride and zirconium oxide balls are available for all styli and all thread sizes.

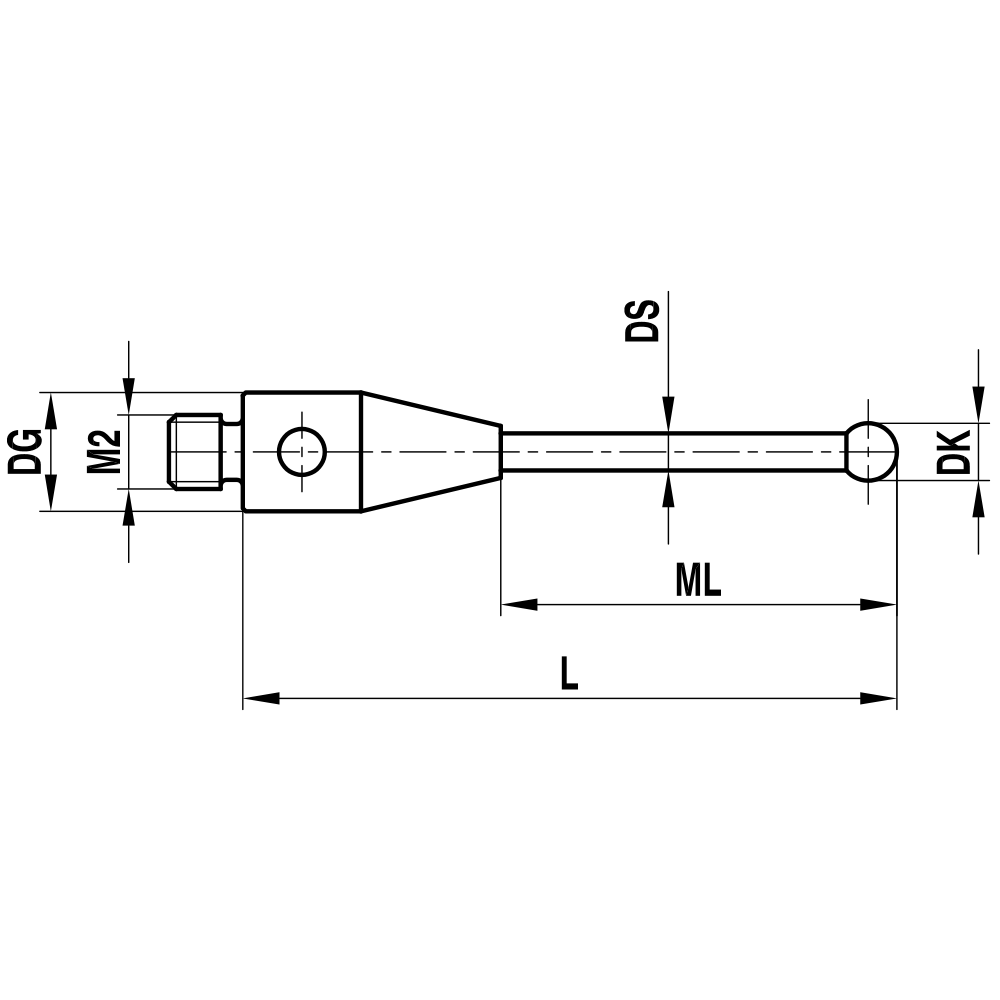

Sphere-Ø mm DK | Measure. len. mm ML1/ML | Body-Ø mm DG | Total length mm L | Shaft-Ø mm DS1/DS | Weight g | Price/piece |
---|---|---|---|---|---|---|
4.0 | 6.0 | 3.0 | 12.0 | 2.0 | 1.0 | 23.00 |
