M2 - Straight Styli

Email this Description

M2 - Straight Styli
Stainless steel base, carbide stem, ruby ball

TH M2 030 03 021

Ruby ball, peg mounted, except for ball-Ø 0,3 mm – 0,6 mm. Special design on request.
Silicon nitride and zirconium oxide balls are available for all styli and all thread sizes.

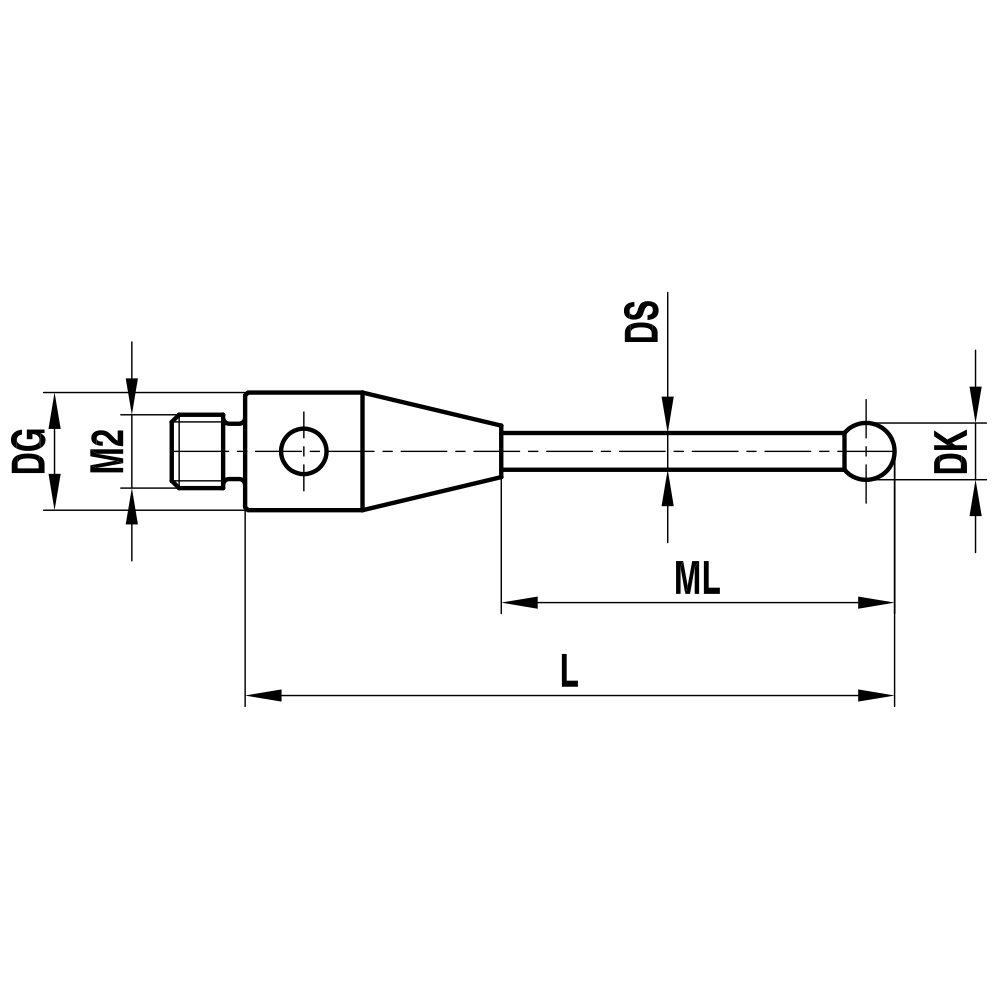

Sphere-Ø mm DK Measure. len. mm ML1/ML Body-Ø mm DG Total length mm L Shaft-Ø mm DS1/DS Weight g Price/piece
3.0 15.5 3.0 21.5 1.5 1.0 23.00
