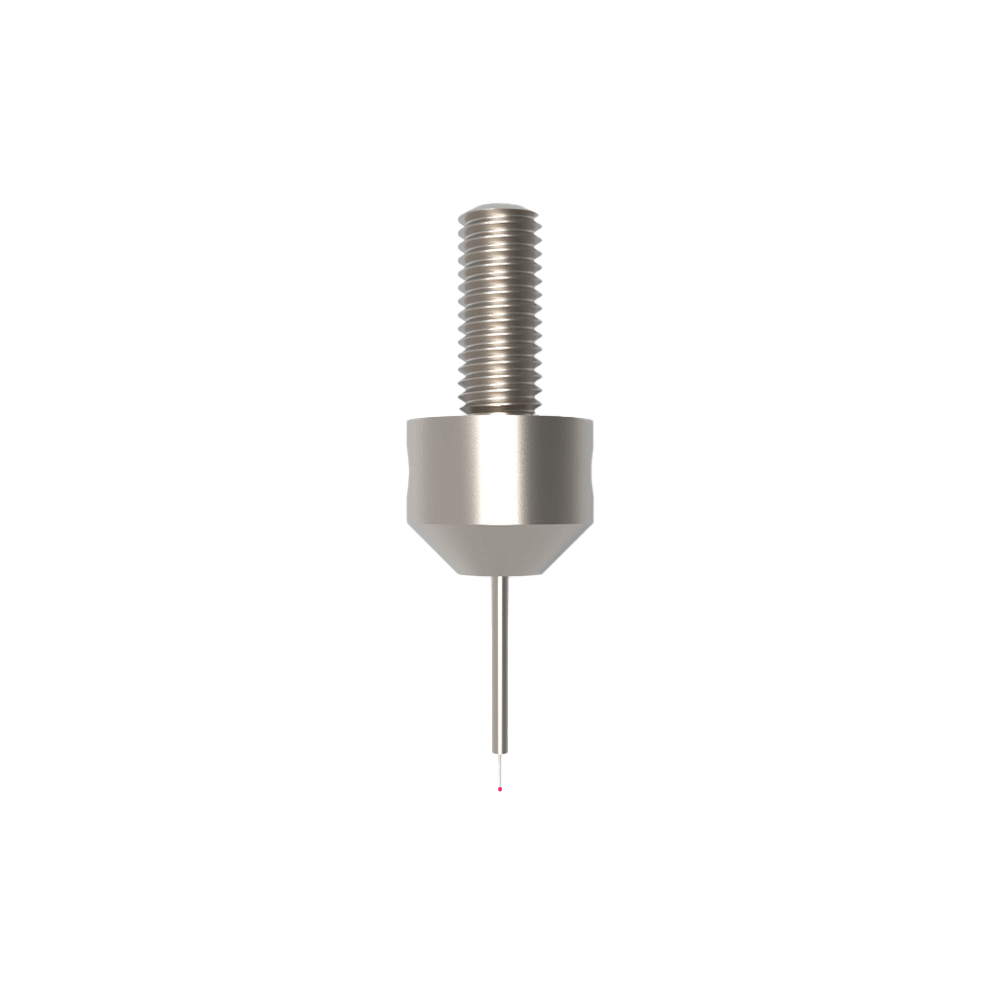

M5 - Styli for Star Configurations
Carbide stem, ruby ball

LH M5 003 11 021

This Conic fitting stylus is for the old Zeiss and Mauser machines that do not use adapter plates. For more options consider using the M5 adapter (AT KO 000 18 010)
Ruby ball, peg mounted, except for ball-Ø 0,3 mm – 0,6 mm. Special design on request. Thread length 20 mm for Body-Ø 19 mm.
Silicon nitride and zirconium oxide balls are available for all styli and all thread sizes.

Sphere-Ø mm DK Measure. len. mm ML1/ML Body-Ø mm DG Total length mm L Shaft-Ø mm DS1/DS Weight g Price/piece
0.3 2.3 / 12.8 11.0 21.8 0.2 / 1.0 6.0 52.00
