M5 - Styli for Star Configurations, Non Threaded

Email this Description

M5 - Styli for Star Configurations, Non Threaded
Carbide stem, ruby ball

KT M5 015 02 022

Ruby ball, peg mounted, except for ball-Ø 0,3 mm – 0,5 mm. Special design on request.
Silicon nitride and zirconium oxide balls are available for all styli and all thread sizes.

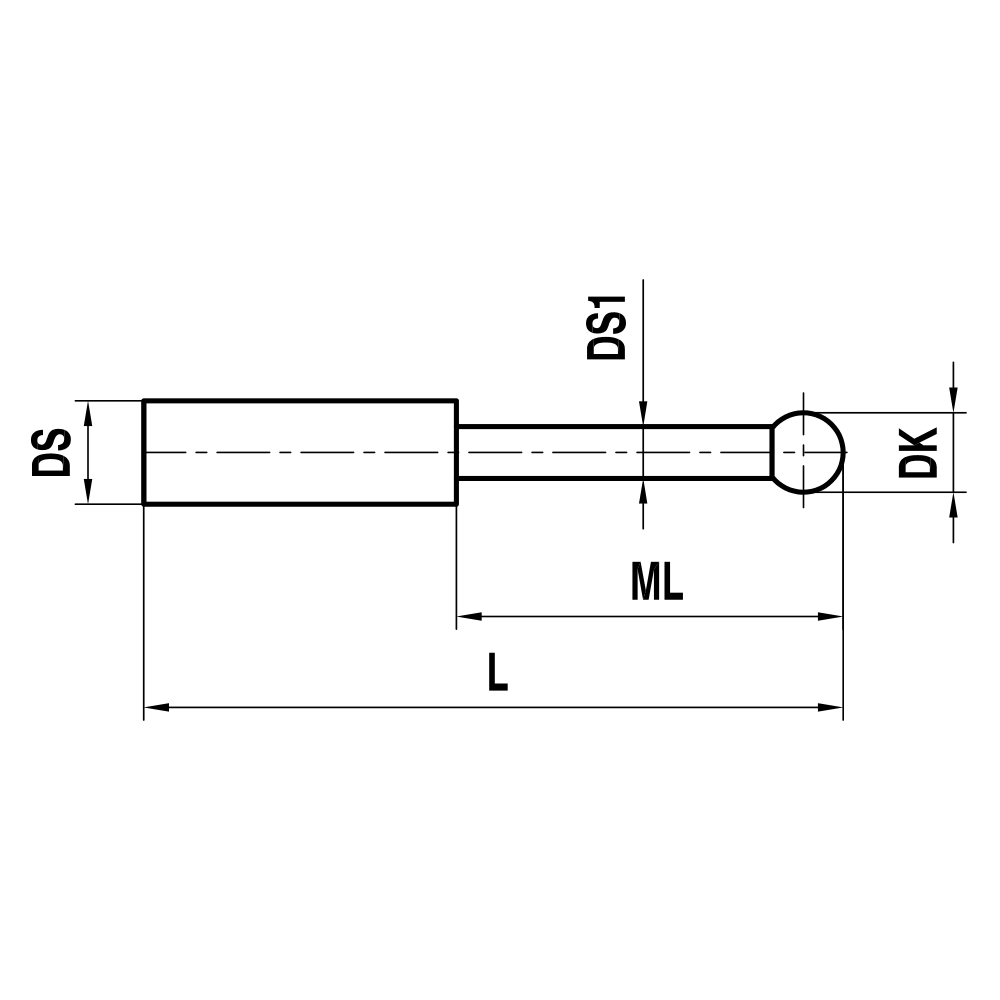

Sphere-Ø mm DK Measure. len. mm ML Total length mm L/L1 Shaft-Ø mm DS1/DS Weight g Price/piece
1.5 10.35 22.75 / 22.0 1.2 / 2.0 1.0 130.00
