M5 - Styli for Star Configurations, Non Threaded

Email this Description

M5 - Styli for Star Configurations, Non Threaded
Carbide stem, ruby ball

KT M5 003 01 015

Ruby ball, peg mounted, except for ball-Ø 0,2 mm - 0,6 mm. Special design on request.
Silicon nitride and zirconium oxide balls are available for all styli and all thread sizes.

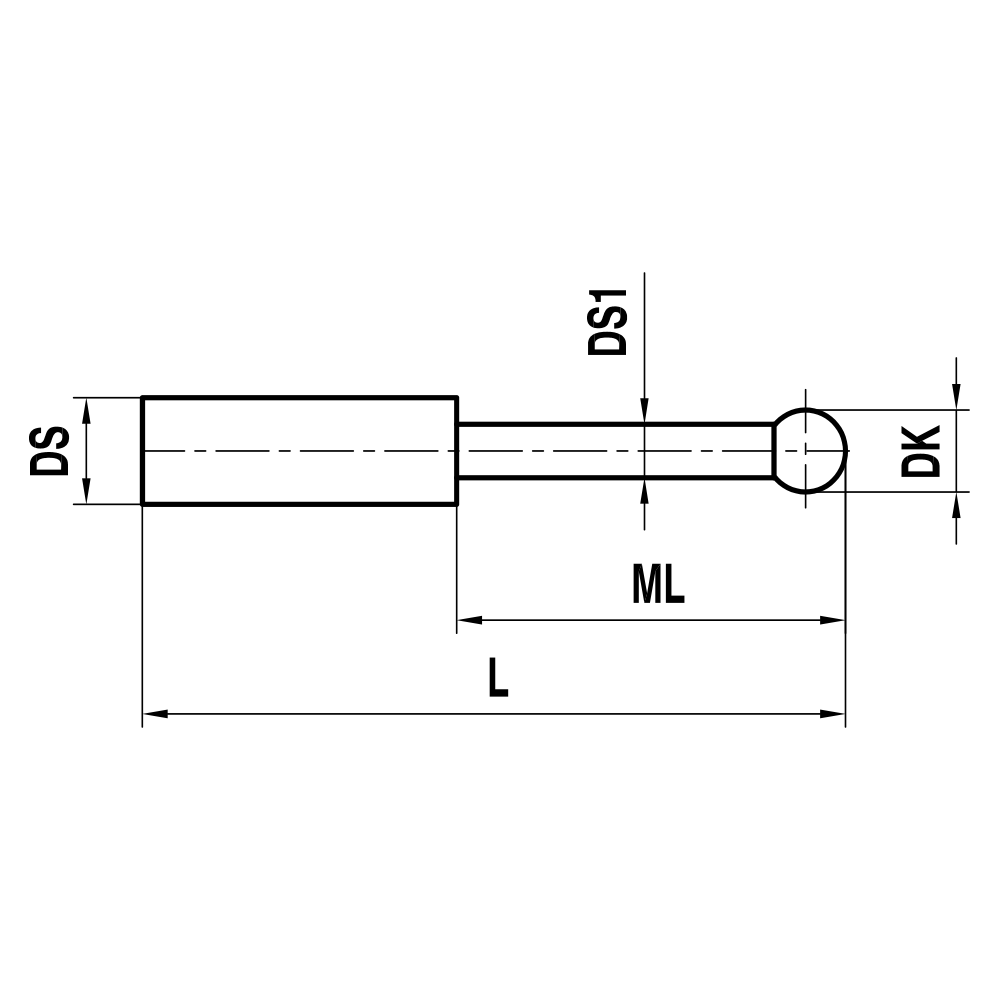

Sphere-Ø mm DK Measure. len. mm ML Total length mm L Shaft-Ø mm DS1 / DS Weight g Price/piece
0.3 2.3 15.3 0.2 / 1.0 1.0 44.00
