M5 - Styli for Swiveling Configurations
S4 steel ball, carbide stem, ruby ball

KK M5 010 10 017

Ruby ball, peg mounted. Applied with holder KI M5 022 11 040. Special design on request.
Silicium nitride and zirconium oxide balls are available for all styli and all thread sizes.

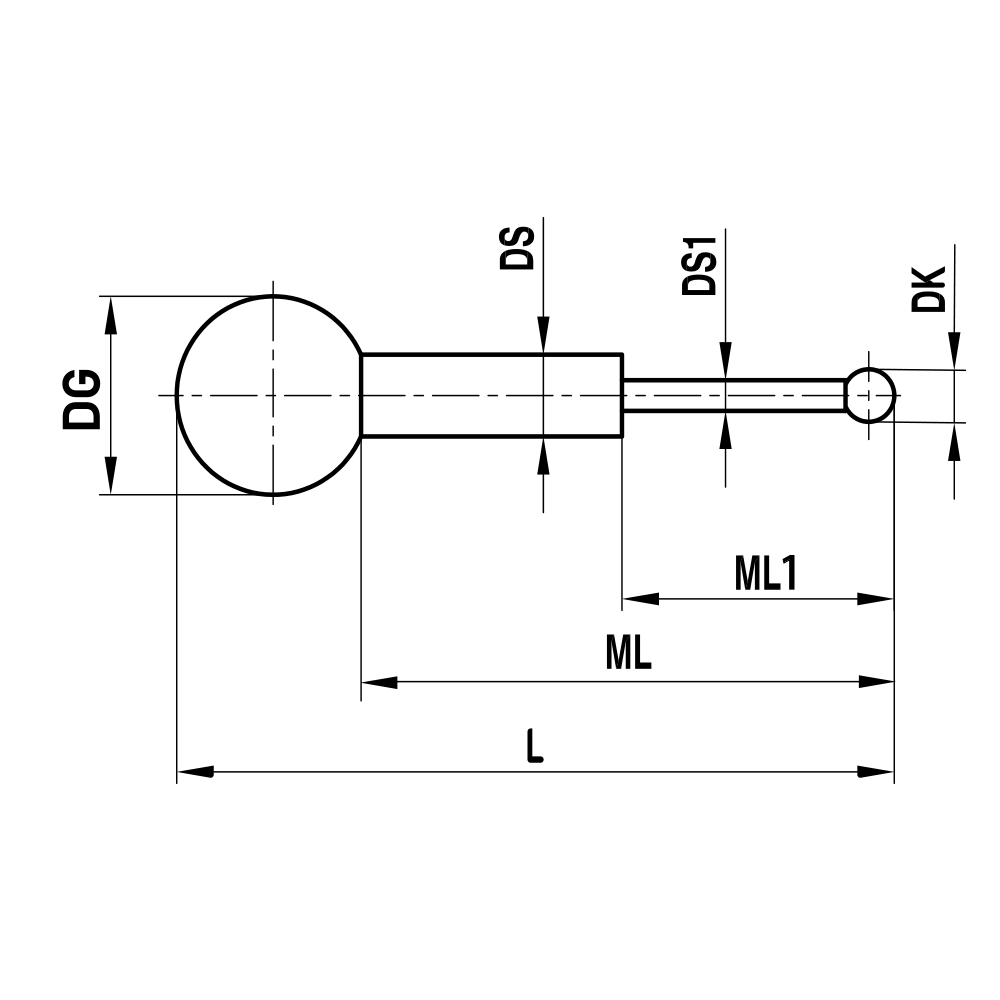

Sphere-Ø mm DK Measure. len. mm ML Total length mm L Shaft-Ø mm DS1 / DS Weight g Price/piece
1.0 5.0 17.5 0.8 / 1.0 1.0 56.00
